Robust. Reliable.
Built for big jobs.

Proven technology
for demanding applications.

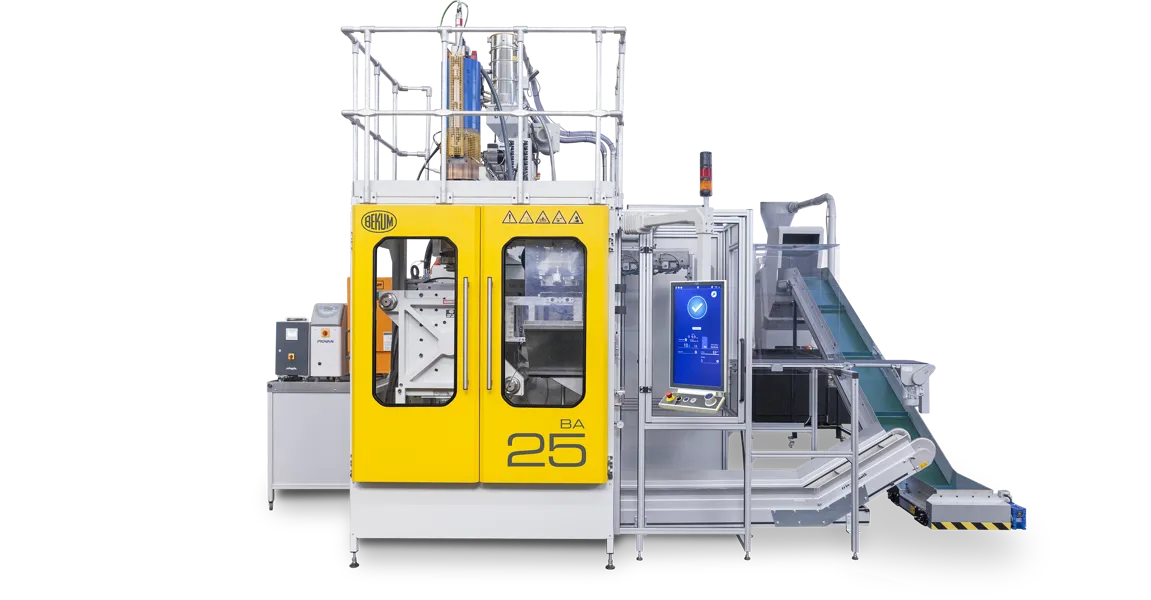

The BA 25 is a compact, hydraulic single-station extrusion blow moulding machine for producing larger hollow bodies up to 20 L – specially designed for demanding plastics like polycarbonate. Whether crystal-clear 5-gallon water bottles or durable PE canisters, this machine delivers with its sturdy construction, precise process control, and high output. Especially in multi-use bottle production with PC, the BA 25 is in international use – including by leading global water brands.

Specialized in water bottles.
Ready for more.

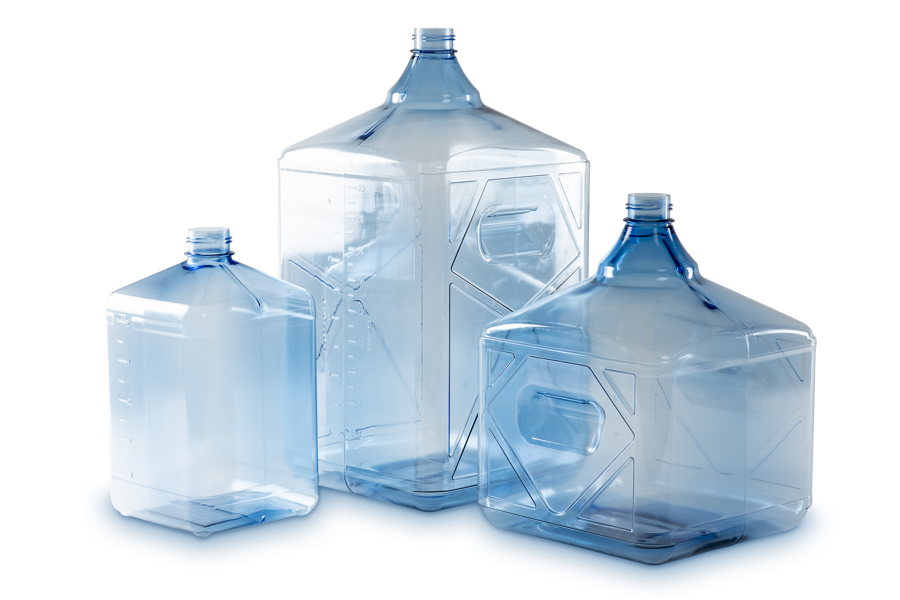

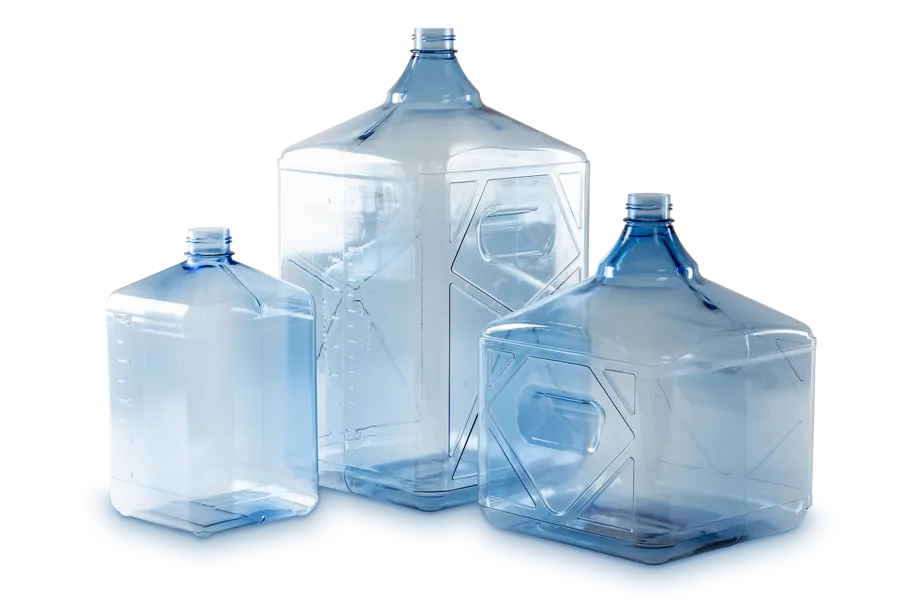

Optimized for polycarbonate – clear and stable

The BA 25 was specifically developed to process polycarbonate. Its temperature-controlled process and regulated extrusion ensure crystal-clear transparency and consistent product quality. Material blends with recyclate are also possible, as is production with virgin material.

Up to 160 bottles per hour – fully automated

The machine can produce up to 160 5-gallon bottles per hour – including flash removal and part handling. Special shapes with or without handles can also be efficiently produced. Bekum supplies perfectly matched moulds and material flow systems.

Durable technology with a strong core

The compact, low-wear machine concept ensures a long service life. Energy-saving AC extruders with special screw geometry and modern proportional hydraulics provide high efficiency and gentle material processing.

Bekum expertise in polycarbonate production

Water bottles made from PC place the highest demands on the blow moulding process – from temperature stability and clarity to cleanability. Bekum brings decades of experience in meeting these challenges. The BA 25 is the ideal machine concept and is firmly established worldwide for reusable packaging.

REQUEST A CONSULTATION

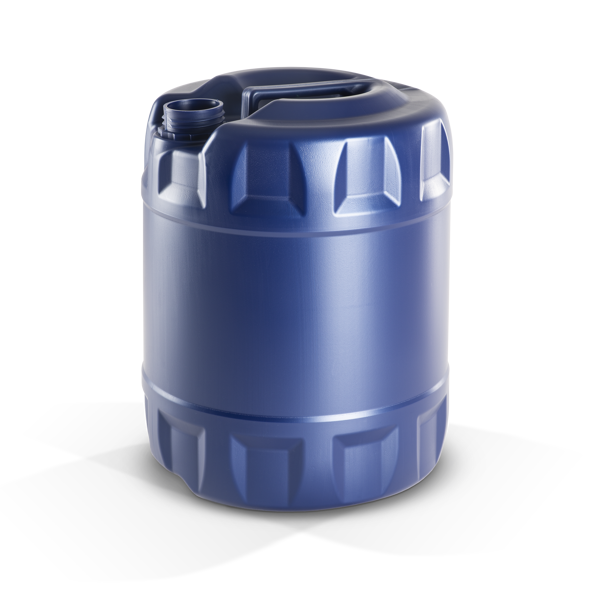

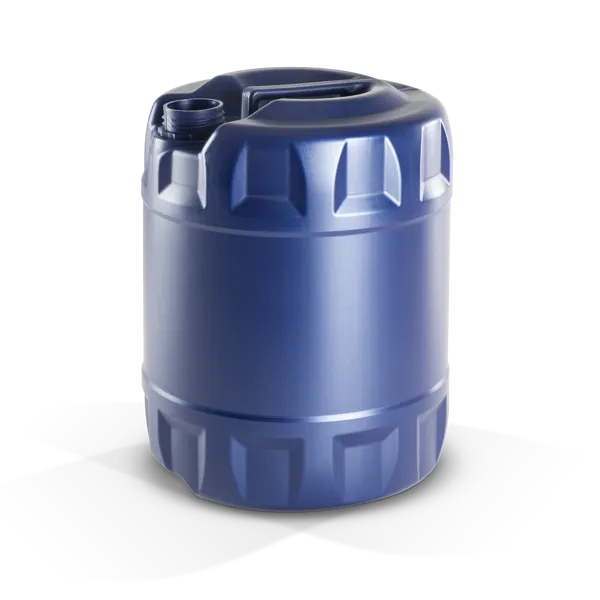

Flexible options for canisters up to 20 L

In addition to water bottles, the BA 25 can also produce PE canisters up to 20 litres – with only minor adjustments. This offers maximum flexibility for changing products and markets. Even special designs with integrated handles are easily implemented.

LEARN MORE ABOUT CANISTERS

Versatile in use. Proven worldwide.
Whether for large-scale water bottlers or technical applications – the BA 25 stands for long-lasting technology, high flexibility, and proven Bekum quality. Let’s discuss your project.

Technical specifications

Clamping force (kN)
Clamping force (US t)
Mold width, max. (mm)
Mold length, max. (mm)
Mold thickness (mm)
Mold opening stroke (mm)
Carriage stroke (mm)
Maximum product capacity per mold (l)
BA25
Clamping force (kN): 200
Clamping force (US t): 22,5
Mold width, max. (mm): 690
Mold length, max. (mm): 630*
Mold thickness (mm): 2 x 250
Mold opening stroke (mm): 390
Carriage stroke (mm): -
Maximum product capacity per mold (l): 35
Machine standard in bold.
*at 100 mm overhang
